ACSR Manufacturers Aluminium Cable Transmission Line ACSR Conductor Wire

FOB Reference Price:Get Latest Price
$0.60 - $17.78 / Meter | 1000.0 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 100000 >100000
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
RMjT
Model Number:
All Aluminum Conductor
Insulation Material:
Bare
Type:
High Voltage
Application:
Overhead
Conductor Material:
Aluminum
Jacket:
Bare Conductor
Rated Voltage:
0.6/1kv, 11kv, 33kv, 100kv,400kv
Standard:
BS, ASTM, DIN, GB
Certificate:
ISO9001-2008, ISO14001-2004
Panking:
wooden drum steel drum
Product name:
acsr conductor
Conductor:
acsr aluminium cable
Keywords:
aac aaac acsr conductor price
Name:
acsr conductor 50mm2
Voltage:
1kV~33kV
Core:
acsr steel core wire
Supply Ability
Supply Ability:
10000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
wooden drum steel drum or wooden drum&steel drum for All Aluminum Conductor
Port
Qingdao,Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Meters) 1 - 100000 >100000
Est. Time(days) 20 To be negotiated
Video Description

acsr aluminium wires acsr conductor acsr scrap







Product Description









The picture of acsr scrap





Description of acsr scrap



1. Applications of Bare Conductor



AAC AACSR and ACSR Conductor have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance ,low cost and large transmission capacity. They are also suitable for laying across rivers, valleys and the places where special geographical features exist.



2. Service Performance

(1).The permissible long-time operating temperature for aerial conductor is 70oC.

(2).Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

(3).When connecting conductors ,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.

(4).Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.



3.Product Performance

(1).The electrical performance of AAC Conductor and ACSR Conductor is indicated in DCΩ/km(20oC).The resistivity of the hard aluminum wire for stranded wires is not greater than 28.264 nΩ. m of international standard value.

(2).The rated tensile strength of AAC Conductor is denoted with the result of total cross-section of all aluminum conductors multiplied by min. tensile of corresponding size specified in the standard for aluminum wire.

(3).The rated tensile strengh of ACSR Conductor is denoted with sum of all aluminum conductorstensile strength and steels tensile strength.

a.The tensile strength of all aluminum conductors is denoted with the result of all cross-sections of aluminum conductors multiplied by min.tensile strength of corresponding size specified in the standard for aluminum wire.

b.The tensile strength of all steel wire is denoted with the result of all cross-sections of steel wires multiplied by the stress at 1% elongation of corresponding size specified in the standard for steel wire.



4. Products range

1)AAAC(All Aluminum Alloy Conductors)

2)ACSR Conductor(Aluminum Conductor Steel Reinforced)

3)AAC Conductor(All Aluminum Conductors)

4)AACSR(Aluminum Alloy Conductors Steel Reinforced)

5)ACSR/AW(Aluminum Conductor Aluminum Clad Steel Reinforced)



6.Material Standard

(1).The hard aluminum conductor used for AAC Conductor and ACSR Conductor conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).

(2).The zinc coated steel wire used for ACSR Conductor conforms to IEC 60888:1987.

(3).Production can be arranged according to customers requirements for material standard,etc.

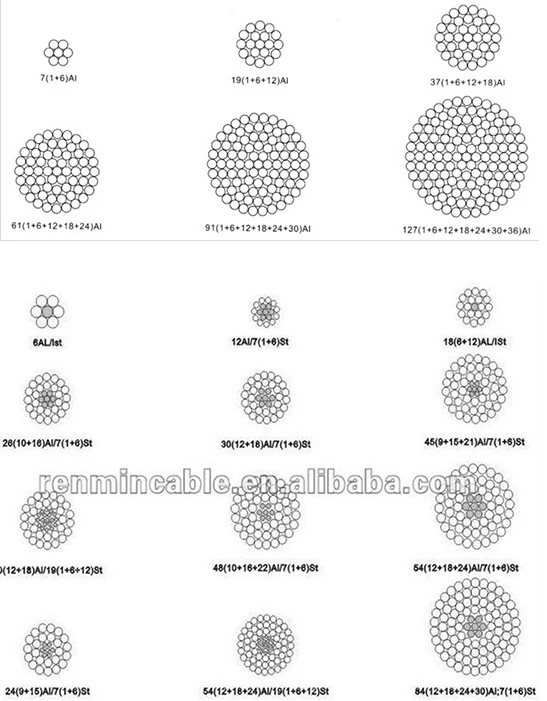

7.Specifications for Bare Conductor

Code name Area Stranding and wire diameter Approox. Overall diameter Weight Nominal breaking load Nom. DC resistance at 20 deg.
Nominal Actual
AWG or MCM mm2 mm mm kg/km kN ohm/km
PEACHBELL 6 13.29 7/1.554 4.67 37 2.49 2.1692
ROSE 4 21.16 7/1.961 5.89 58 3.96 1.3624
IRIS 2 33.61 7/2.474 7.42 93 5.97 0.8577
PANSY 1 42.39 7/2.776 8.33 117 7.32 0.6801
POPPY 1/0 53.48 7/3.119 9.36 147 8.73 0.539

ASTER 2/0 67.42 7/3.503 10.51 186 11.00 0.4276
PHLOX 3/0 85.03 7/3.932 11.80 234 13.47 0.339
OXLIP 4/0 107.23 7/4.417 13.26 296 16.98 0.2688
VALERIAN 250 126.71 19/2.913 14.57 349 20.62 0.2275
SNEEZEWORT 250 126.71 7/4.80 14.40 349 20.07 0.2275

LAUREL 266.8 135.16 19/3.01 15.05 373 22.00 0.2133
DAISY 266.8 135.16 7/4.96 14.90 373 21.41 0.2133
PEONY 300 152.0 19/3.193 15.97 419 24.03 0.1896
TULIP 336.4 170.45 19/3.381 16.91 470 26.95 0.1691
DAHLIA 556.5 282 19/4.346 21.73 777 43.27 0.1022
MISTLETOE 556.5 282 37/3.114 21.79 777 43.62 0.1022
MEADOWSWEET 600 304 37/3.233 22.63 838 47.03 0.0948
ORCHID 636 322.25 37/3.33 23.31 888 49.85 0.0894







More products



More products for you to choose








Our certification



Our certification

Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on.As first rank of the supplier in China, we have obtained ISO9001, ISO14001 and CCC certificates.





Company Information



Our company

People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.



Production Line

As one of top rank cables manufacturers in China, our Zhitian factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).





Our market

 With the perfect quality and after sales service,our products are very popular in domestic market,whatever in civil using and the government projects.For oversea market,till now we have expanded our market to South America like Chile,Colombia,Bolivia,Brazil and so on,Euro-American market like U.S.A.Germany,Spain,U.K. And so on.Middle East,Africa,Southeast Asia,Mongolia and some other areas.







Packaging & Shipping

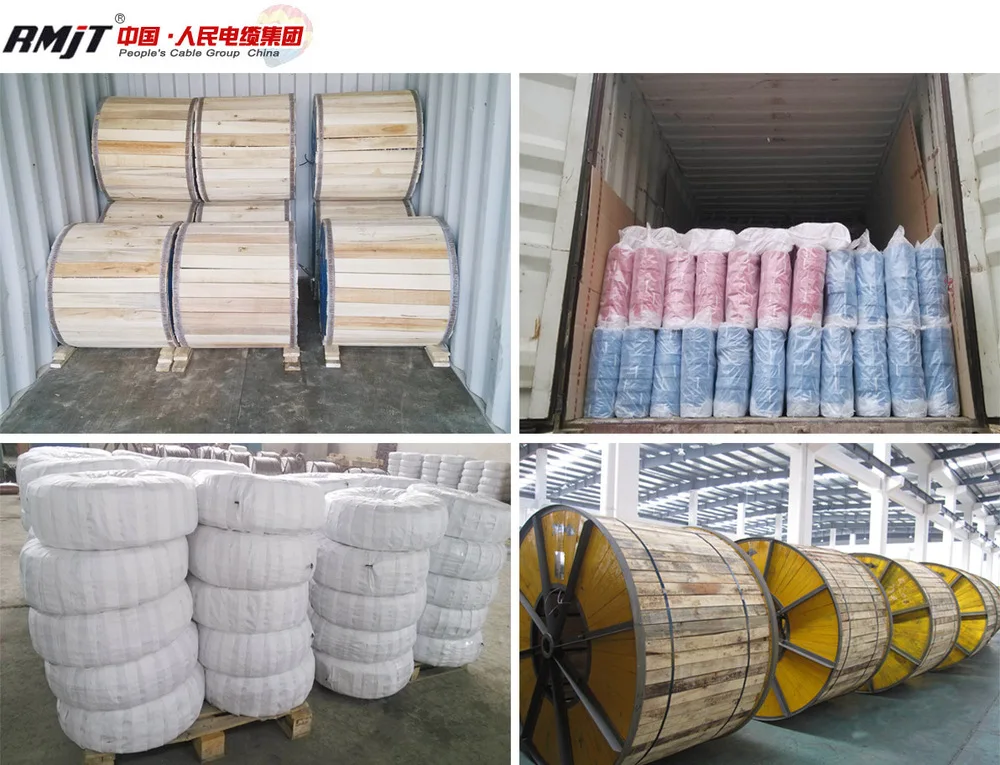

Product packaging
Wooden or iron drum or as customer's requirement
